Focus Zr GEN 1

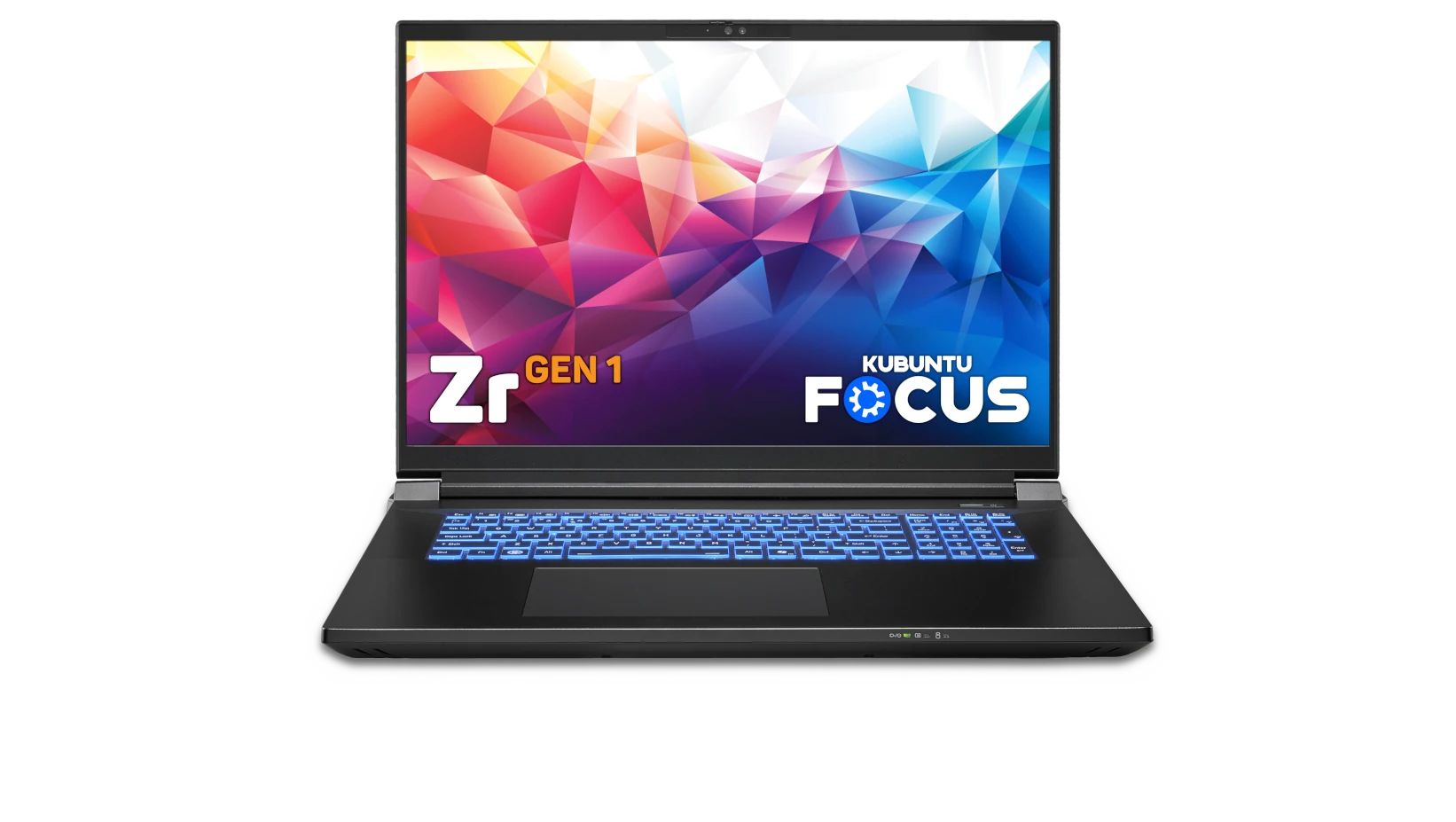

KFocus Zr GEN 1 Front View
KFocus Zr GEN 1 Front View

Maximum • Portable • Power

18.0" 2560x1600 100% DCI-P3

VIBRANT

240Hz G-SYNC DISPLAY
KDE PLASMA 5.27 LTS

BEAUTIFUL

DESKTOP ENVIRONMENT
INTEL® ULTRA 9 275HX

ASTOUNDING

24-CORE / 24-THREAD
UP TO RTX 5090

BLAZING

NVIDIA 24 GB GDDR7
5.0 MEGAPIXEL

CRISP

2880x1800 WEBCAM
SIDE-FIRING

DYNAMIC

HIGH-DEF SPEAKERS
MAX PERFORMANCE

MUX

BIOS SWITCH
MEMORY UP TO

192 GB

4000+ MHZ DDR5 RAM
THUNDERBOLT 5

80 Gbit/s

DATA & DISPLAYS
FOUR NVMe

16.0 TB

READS TO 14,800 MB/s

Like all Kubuntu Focus Systems, the Zr GEN 1 can save you time and hassle every day. It requires very little setup, is self-explanatory, and works well in no- and low-I.T. environments. It features validated updates for years after your purchase.

PERFORMANCE

The Zr GEN 1 workstation combines the most powerful mobile hardware with the best out-of-the-box Linux experience. Highlights include a 5.4 GHz 24-core CPU, Blackwell RTX 50-series GPUs, high-speed DDR5 RAM, and PCIe 5.0 storage. Recommended for software development, 3D modeling, Kubernetes clusters, AAA Steam games, machine learning, and content creation. Advanced CPU and GPU efficiency help it run cooler and quieter across all workloads.

PROCESSOR & MEMORY

Blaze through single- and multi-core jobs like never before with the cool and efficient Ultra 9 275HX “Arrow Lake” CPU. This processor packs 24 cores, 24 threads, and 36 MB of Smart Cache. Combined with high-speed DDR5 RAM, the CPU performance exceeds most mobile and desktop systems. Geekbench 5 tests show performance increases of 5% and 11% for single- and multi-core scores over the i9-14900HX CPU from prior-generation model.[01]

While the performance bump is nice, the big story with this CPU is the leap in efficiency. Intel claims a 40% improvement over the i9-14900HX, and our experience supports this.[01a]

INTEL® CORE ULTRA 9

275HX

24C/24T ARROW LAKE
TURBO BOOST

5.4 GHz

2.7 GHz BASE
MEMORY UP TO

192 GB

4000+ MHz DDR5 RAM
TSMC PROCESS

N3B

36 MB CACHE

GRAPHICS

Get amazing performance and features with performance-tuned[02] NVIDIA® GeForce® RTX Blackwell GPUs. Fourth-gen ray-tracing and fifth-gen tensor cores provide a significant performance increase across all workloads tested, including machine learning, video editing, simulations, 3D rendering, and Steam games.

Compared to the prior generation, the 50-series GPUs provide substantially more and faster VRAM. This is important for certain workloads such as machine learning and rendering. The 5080 has 16 GB GDDR7 VRAM, up from 12 GB GDDR6 in the 4080. The 5090 has 24 GB GDDR7 VRAM, up from 16 GB GDDR6 in the 4090.

Each laptop also has an integrated Intel iGPU with 4 Xe cores at 1.9 GHz. The Zr will remind you to use this GPU when on battery to conserve power. It provides strong desktop performance and is useful when you want to use all the VRAM of the NVIDIA GPU for tasks like ML or 3D rendering.

NVIDIA RTX
BLACKWELL

RTX 50

TENSOR & RT CORES
ADVANCED PROCESS

TSMC 4N

HIGHLY EFFICIENT

DESIGN

Enjoy simple beauty without sacrificing performance. The Zr GEN 1 marries enterprise-class hardware with meticulous OS integration and Linux-first support. It features excellent build quality, with an aluminum deck and lid, and a resin screen bezel and underside. Everything you see, touch, and hear exudes quality, including Audio & Visual capabilities, Precision Keyboard & Touchpad, and Focus Tools.

AUDIO & VISUAL

Enjoy world-class visuals with a large, bright, vibrant, and fast 18" display. Specs include WQXGA (2560 x 1600) resolution, 525 nits brightness, 100% DCI-P3 color, 240 Hz G-Sync, and wide viewing angles (> 135°).

Enjoy quality audio with a crisp and loud high-dynamic-range 5-speaker system. Join meetings with near-zero setup using the integrated noise-cancelling microphone array and the crisp, 5.0 megapixel 2880x1800 webcam. Secure against prying eyes with the integrated privacy shutter.

The Focus Hardware System optimizes the display and sound by setting the correct kernel parameters and the nominal DPI for both the graphical desktop and virtual terminals.

100% DCI-P3 COLOR

VIBRANT

525 NITS DISPLAY
240Hz G-SYNC

FAST

WIDE-ANGLE IPS
OPTIMIZED

SCALE

& KERNEL SETTINGS
ADD UP TO

3 X 4K

EXTERNAL DISPLAYS

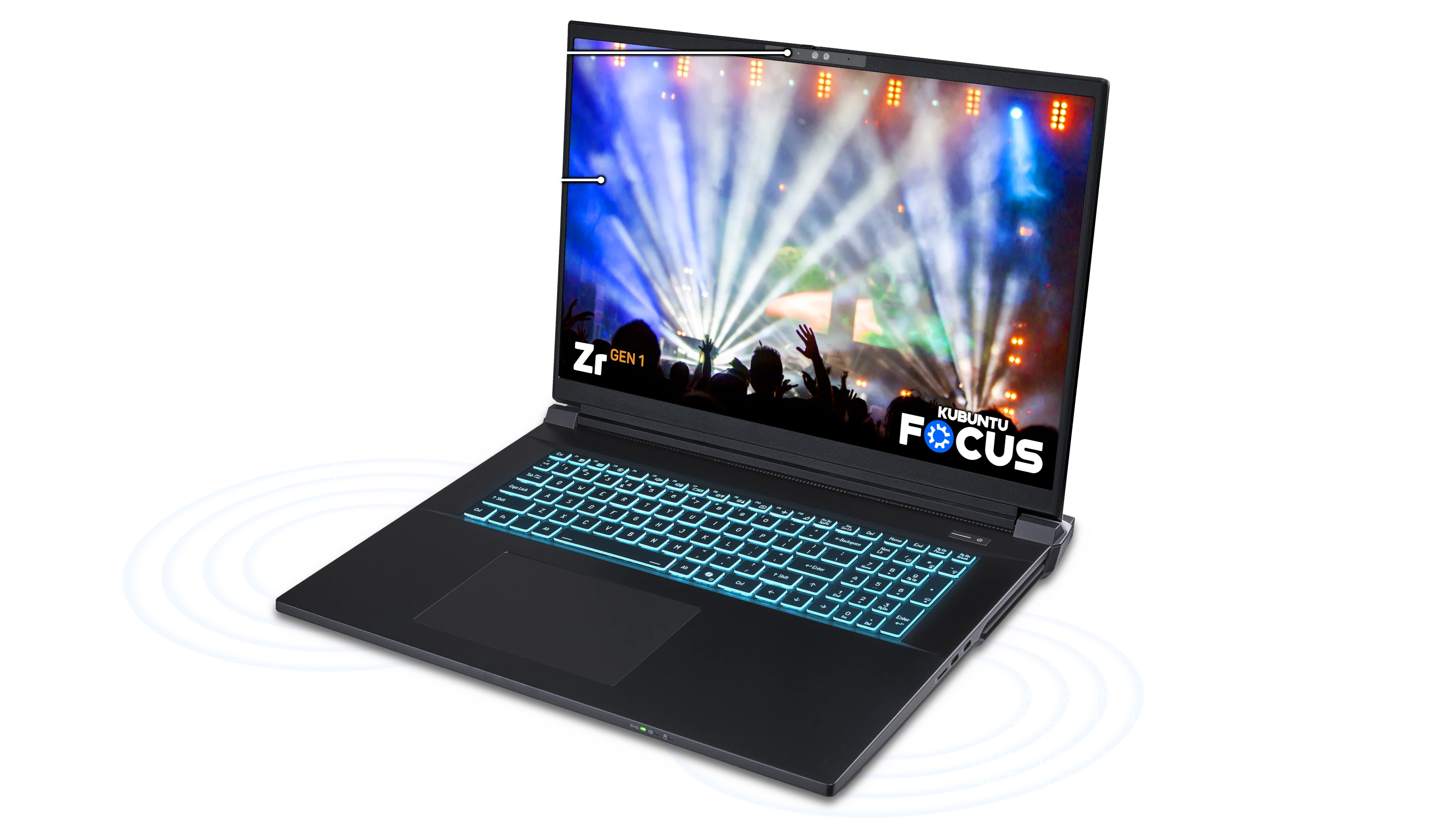

Multimedia

PRECISION KEYBOARD & TOUCHPAD

Control your computer with precision. Light the keyboard LEDs with one of 65,536 colors. Type quickly and accurately with reliable scissor mechanisms and 3.5 mm of travel. Use 2- and 3-finger gestures on the precision glass touchpad to tap and scroll effortlessly through documents.

The Focus Hardware System optimizes the keyboard and touchpad: it adjusts the Hints Widget to provide guidance specifically for the model; it configures the touchpad driver sensitivity and multi-touch support; and it provides a tool to set and preserve the keyboard’s LED color.

ALUMINUM ALLOY

METAL

DECK AND LID
65K COLOR

LO-FLEX

BACKLIT KEYBOARD
MODEL-SPECIFIC

HINTS

DESKTOP WIDGET
MULTI-TOUCH

GLASS

PRECISION TOUCHPAD
Keyboard Colors and Touchpad

Focus Tools

Make hard things easy with open-source Kubuntu Focus Tools. These are integrated with Kubuntu 24.04 LTS, and are enhanced automatically with regular software updates.

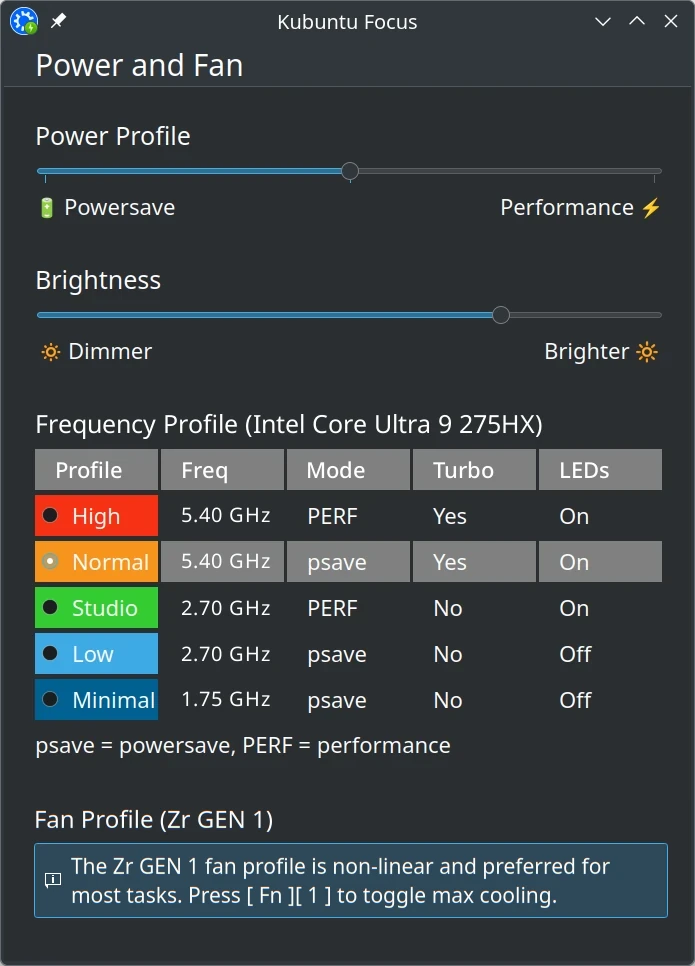

Consider, for example, the Power and Fan tool. Open the tool, unplug the AC, and see how power-saving optimizations are applied in real time. Another example is System Rollback, which can be used to restore your system to a snapshot taken weeks earlier with just a few clicks.

Get started fast with the comprehensive Welcome Wizard. Explore capabilities from the Feature Guide. Configure, install, and launch Curated Apps with a single click. Complete complex workflows in record time with Guided Solutions. Many more can be found on the Focus Tools page.[03]

Power and Fan

CONNECTIVITY

Communicate fast with high-speed Wi-Fi, Bluetooth, and Ethernet. Enjoy the ease of connecting just about anything to 8 high-speed ports without expensive dongles or docks.

COMMUNICATIONS

Rapidly communicate using technologies like 2.5 Gigabit Ethernet, Wi-Fi 7, and Bluetooth 5.4, whether at home, at work, or on the road.

HIGH-SPEED PORTS

Connect to anything, anytime, with all the high-speed ports you need. For example, you can surround yourself with three external 4K monitors, edit photos from a micro SD card, navigate with a wireless mouse and keyboard, and charge-and-debug a phone. All at the same time.

TRI-BAND BE200

WI-FI 7

A/B/G/N/AC/AX/BE
2 x INTEL KILLER

RJ-45

2.5 GIGABIT ETHERNET
BLUETOOTH 5.4

DUAL

KEYBOARDS, HEADSETS
HDMI 2.1, USB-C

4K VIDEO

NATIVE PORTS
2 USB-A, 2 USB-C

4 x USB

USB-C CHARGING
THUNDERBOLT 5

80 Gbit/s

DATA & DISPLAYS

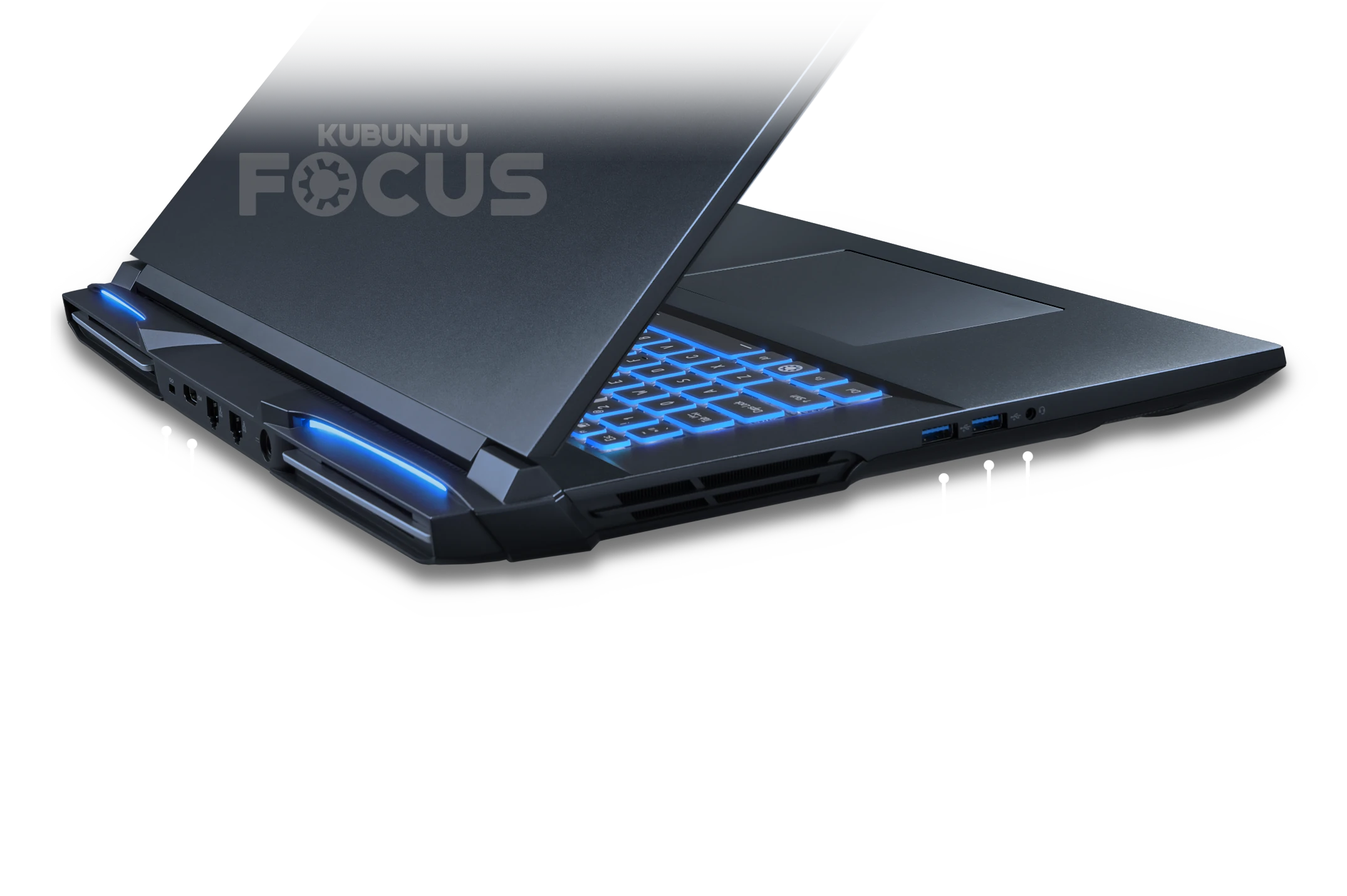

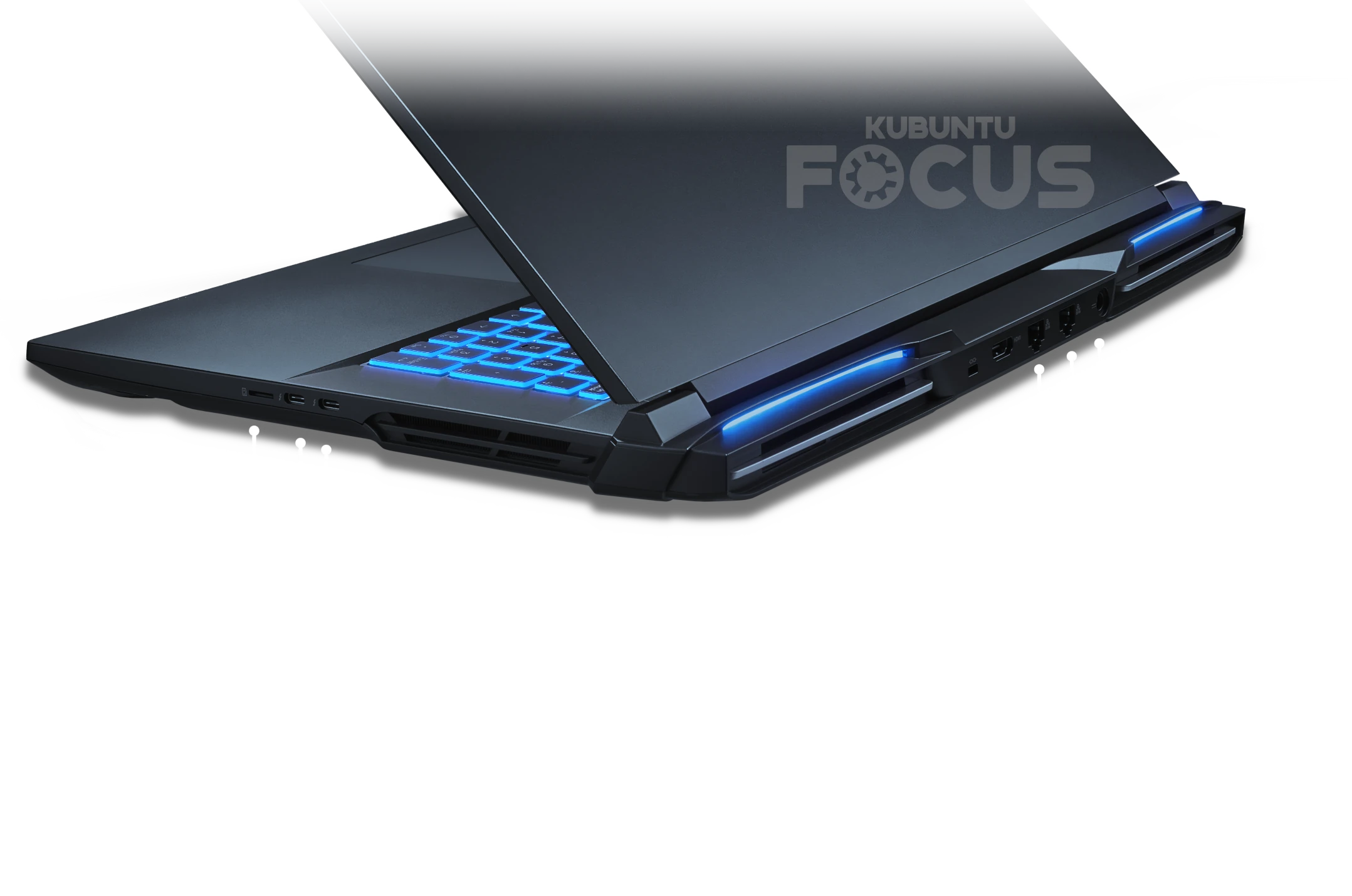

Ports-01Ports-02

BENCHMARKS

We benchmark all Focus systems extensively to optimize for compatibility and performance. We hope you find the highlights below helpful when assessing the capabilities of the Zr GEN 1. We encourage you to compare the results here with your device or others.

Up to 30 Times Faster ML

MACHINE LEARNING

Up to 30x faster TensorFlow[04]

Run GPU-accelerated ML in minutes with the Focus Deep Learning Suite. It guides you to install Anaconda and then add and test TensorFlow, PyTorch, and Jupyter Notebook as needed. Develop with industry-standard PyCharm from the included JetBrains Toolbox.

We have compared the RTX 5080 M with the last-gen RTX 4070 M on Stable Diffusion 1.5 and Qwen3-0-6b tests. The TSMC “4N” lithography and 5th-generation Tensor cores makes the 50-series GPUs faster, cooler, and more efficient.

We continuously validate, curate, and pin the Deep Learning Suite, graphics drivers, CUDA, cuDNN, TensorRT, and OptiX to always provide excellent performance, reliability, and compatibility across ML and GPU workloads. Improvements and maintenance are provided seamlessly through normal software updates.

Benchmark[05]RTX 5090 M (est)[06]RTX 5080 MRTX 5070 Ti MRTX 4090 MRTX 4080 MRTX 4070 M
Stable Diffusion 1.5189 Images / 5 min116 Images / 5 min92 Images / 5 min127 Images / 5 min118 Images / 5 min80 Images / 5 min
Qwen03-0-6b870 Gen / 5 min534 Gen / 5 min482 Gen / 5 min579 Gen / 5 min528 Gen / 5 min459 Gen / 5 min
Video RAM24 GB16 GB12 GB16 GB12 GB8 GB

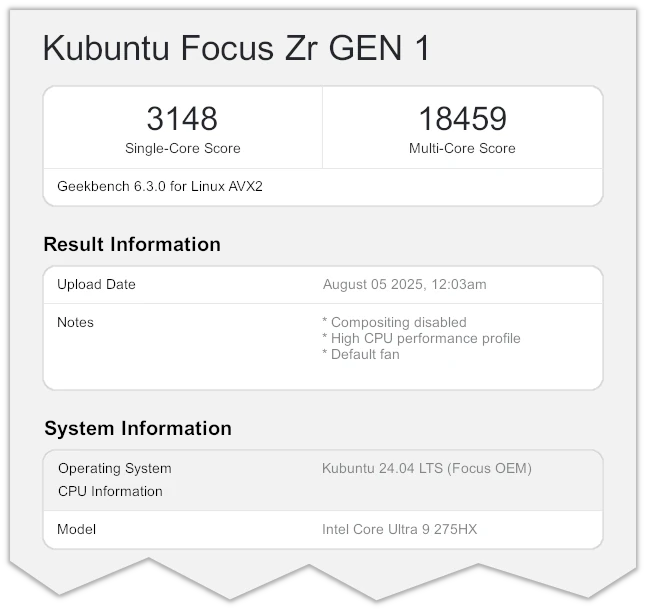

Zr GEN 1 Geekbench 6

GEEKBENCH

5.4 GHz, 24 Cores, 24 Threads

In addition to its much higher efficiency and cooler temperature, the Ultra 9 275HX CPU shows between 0-5% single-core and 11-13% multi-core performance improvements compared to the prior gen M2's i9-14900HX. The superior cooling and the high-speed DDR5 RAM enable the 8 performance cores, 16 efficiency cores, and 24 threads of the “Arrow Lake” processor to achieve peak performance.

 Zr GEN 1M2 GEN 6M2 GEN 5M2 GEN 5M2 GEN 4M2 GEN 3
CPUUltra 9
275HX
Ultra 9
275HX
i9
14900HX
i9
13900HX
i7
12700H
i7
11800H
GB 5 Single
GB 5 Multi
2,402
22,820
2,405
23,818
2,288
21,539
2,120
19,807
1,893
12,753
1,690
10,410
GB 6 Single
GB 6 Multi
3,148
18,459
3,214
19,524
3,208
17,274
2,881
15,616
2,510
12,060
na
Superposition

GRAPHICS BENCHMARKS

Dazzling and Efficient

Experience unparalleled mobile GPU performance. The 16 GB RTX 5080 and the 24GB RTX 5090 are the most powerful GPUs we've ever offered in this form factor.

When plugged in, the GPU uses the highest available frequencies to provide maximum performance.[02a] Compare this with some laptops which throttle frequencies up to 40% to fit a bigger GPU in a smaller case. A full-speed GPU, like the one in the Zr, can out-perform some frequency-throttled GPUs with nominally higher specs.

Run the most demanding benchmarks well over 60 FPS on High or Ultra settings. This GPU provides class-leading performance for video editing, simulations, 3D rendering, Steam games, and machine learning.

Benchmark[07]RTX 5090 M (est)[10]RTX 5080 MRTX 5070 Ti MRTX 4090 MRTX 4080 MRTX 4070 M
Superposition
Medium 1080p
305/40,707248/33,095192/25,843247/32,990207/27,664136/18,140
Superposition
High 1080p
229/30,543186/24,832141/18,788184/24,533156/20,841103/13,744
Superposition
Extreme 1080p
101/13,50082/10,97664/8,47082/10,99670/9,41148/6,377
Heaven 4
Medium[08]
538/13,539437/11,007343/8,652426/10,735371/9,348263/6,621
Heaven 4
Ultra[09]
325/8,165264/6,638197/4,961249/6,278210/5,288137/3,452

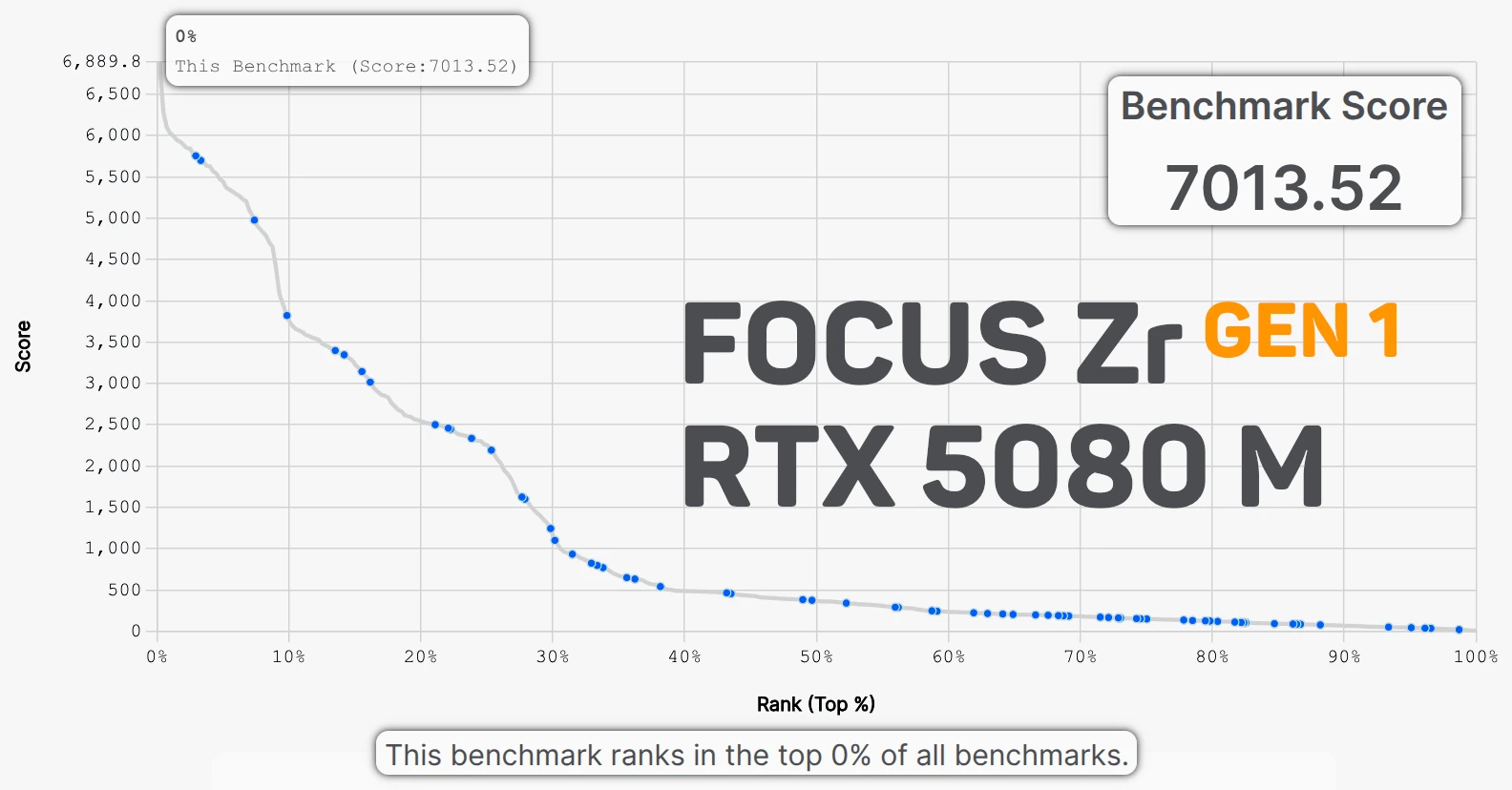

Blender 4.4.0 Rendering

BLENDER 3D RENDERING

OptiX, RTX, and Tensor Cores

Render Blender scenes faster than >99% of all devices tested with the RTX 5080 M. This is greater than the most expensive proprietary Unix® laptops.

Besides the amazing GPU hardware, the OptiX rendering library provided with NVIDIA RTX GPUs is usually many times faster than OpenCL or CPU rendering used by non-NVIDIA systems.[11]

5090 M (est)[12]5080 M5070 Ti M4090 M4080 M4070 M
8,6507,0145,6888,5046,7344,198

TECHNICAL SPECIFICATIONS

We try to provide all the details you need to decide if the Zr GEN 1 is right for you. If you have questions, please call 844-536-2871 or write TellMeMore@kfocus.org.

OS and SOFTWARE

● Kubuntu 24.04 LTS with KDE Plasma 5.27 LTS

● Kubuntu Focus Tools

● Click-to-launch Curated Apps

● On-Demand Enabled Repositories

● Continuous Support via Normal Software Updates

● Enhanced Reliability with Tested and Curated Kernels, Video Drivers, and Desktop Packages

DISPLAY

● 18.0" Display

● WQXGA IPS LCD

● 2560 x 1600 Resolution

● 100% DCI-P3 Color

● 168 DPI Pixel Density

● 240 Hz Refresh Rate

● Max Brightness > 525 nits

● Anti-Glare Coating (Matte Finish)

● G-Sync Capable with MUX

● Viewing Angles of > 135/135/135°

● Connect Up To 4 Displays: Integrated WQXGA and Three External 4k Monitors with 2 x USB-C, 1 x HDMI.

PROCESSORS

● Intel 15th-Generation “Arrow Lake” Core Ultra 9 275HX Processor

  • 8P Cores at 2.7 GHz Base, Max 5.4 GHz Turbo, 0.8 GHz Idle, 8 Threads
  • 16E Cores at 2.1 GHz Base, Max 4.6 GHz Turbo, 0.8 GHz Idle, 16 Threads
  • 24 Threads Total
  • 36 MB Intel® Smart Cache
  • Intel HM870 Express Chipset
GRAPHICS

The Zr Gen 1 contains both a discrete GPU (dGPU) and an integrated GPU (iGPU). One can use the iGPU to maximize battery life or free up VRAM for GPU compute.

● Up to 4 active displays

● iGPU: Intel® Graphics

  • 4 Xe Cores
  • Max Frequency 1.9 GHz

● dGPU: NVIDIA 5090

  • PCIe Gen 5
  • RTX, CUDA, cuDNN, OptiX, G-Sync
  • Ray Tracing Cores: 4th Gen
  • Tensor Cores: 5th Gen
  • NVENC: 9th Gen
  • NVDEC: 6th Gen
  • PureVideo HD: VP11
  • VDPAU: Feature Set K
  • Total Graphics Power: 150 W + 25 W Dynamic Boost
  • Observed Max Boost: 2407 MHz

● dGPU: NVIDIA 5080

  • PCIe Gen 5
  • RTX, CUDA, cuDNN, OptiX, G-Sync
  • Ray Tracing Cores: 4th Gen
  • Tensor Cores: 5th Gen
  • NVENC: 9th Gen
  • NVDEC: 6th Gen
  • PureVideo HD: VP11
  • VDPAU: Feature Set K
  • Total Graphics Power: 150 W + 25 W Dynamic Boost
  • Observed Max Boost: 2617 MHz
MEMORY

● Dual-Channel DDR5 262-pin SODIMM

● Expandable up to 192 GB

● High-speed 4000+ MHz

STORAGE

● 1 x M.2 2280 NVMe PCIe GEN 5x4 (NVMe)

● 3 x M.2 2280 NVMe PCIe GEN 4x4 (NVMe)

● Drive Selections

  • 1000 GB and larger PCIe GEN 5: Samsung 9100 PRO Read/Write Speeds up to 14,800/13,400 MB/s
  • 1000 GB and larger PCIe GEN 4: Samsung 990 PRO Read/Write Speeds up to 7,450/6,900 MB/s
  •  500 GB only: Crucial Read/Write Speeds up to 4,700/1,900 MB/s
CHASSIS

● Aluminum Alloy Deck and Lid

● Resin Screen Bezel, Underside, and Keys

● User Accessible Components (Storage, Memory, Wi-Fi, Fans) with Standard Phillips Case Screws

● 15.83 x 12.60 x 1.10 in (402 x 320 x 28 mm)

● 8.60 lb (3.9 kg) with Battery

BATTERY

● FlexiCharger Battery Optimization in BIOS

● 98 Wh Embedded 8-Cell Polymer Battery Pack

● Up to 4.0 Hours Modest Use on iGPU with Medium-Low Display Brightness

● Up to 2.0 Hours Modest Use on dGPU with Medium-Low Display Brightness

POWER SUPPLY

● 330 W Power Supply

● Input: AC 100~240 V, 50~60 Hz

● Output: DC 20.0 V, 16.5 A

KEYBOARD

● Full Size Keyboard

● Numeric Keypad

● 3.5 mm travel

● 65,536-Color LED Backlight

● User Configurable Color and Intensity with Function Keys

● Customize to any color with Focus Tool

● Kubuntu Super Key

NETWORK AND BLUETOOTH

● Built-in 2.5 Gigabit RJ-45 Ethernet LAN

● Intel® Wi-Fi 7 BE200 + Bluetooth, M.2 2230 Card

  • LAN and WLAN 802.11be and a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax
  • Bands 2.4, 5, 6 GHz
  • 2x2 Communication Channels
  • 300 Mbit/s @2.4 GHz; 5.8 Gbit/s @ 6 GHz
  • Bluetooth 5.4
TOUCHPAD

● Large Precision Glass Touchpad with Multi-Touch and Scroll

  • 6.0 x 3.5 in (121 x 84 mm)
WEBCAM

● 5.0 MegaPixel (2880 x 1800)

● Temporal Noise Reduction (TNR) Reduces Static in Low Light

● Top-Center Mounted

● Integrated Microphone Array

● Physical Security Shutter

SOUND

● High Definition Audio

● 2 x 1 W Front-Firing Tweeter Speakers

● 2 x 2 W Side-Firing Mid-Range Speakers

● 1 x 4 W Central Subwoofer Speaker

● Integrated Microphone Array

● Headset Audio Out + Mic In

PORTS

● 2 x USB-C 3.2 Gen 2 with Thunderbolt 5, Displayport 2.1b (Power Delivery DC-In on one port)

● 1 x HDMI 2.1b with DSC

● 2 x USB-A 3.2 Gen 2

● 2 x 2.5 Gigabit RJ-45 Ethernet LAN (10/100/1000/2500 Mbit/s)

● 1 x 2-in-1 Audio Jack (Headphone + Microphone)

● 1 x Micro SD Push-Push Card Reader

● 1 x 330 W DC Power

● 1 x Kensington Lock

INTERNAL SLOTS AND EXPANSION

● 5 x M.2 Card Slots

  • 1st for WLAN Combo M.2 2230 Card with PCIe / USB / CNVi interface (E key)
  • 2nd for NVMe M.2 2280 Card with PCIe Gen4 x4 / Gen5 x4 interface (M key)
  • 3rd for NVMe M.2 2280 Card with PCIe Gen4 x4 interface (M key)
  • 4th for NVMe M.2 2280 Card with PCIe Gen4 x4 interface (M key)
  • 5th for NVMe M.2 2280 Card with PCIe Gen4 x4 interface (M key)

● Other Expansion Opportunities

  • Thunderbolt 5 supports eGPUs and multiple high-speed peripherals
  • Connect up to 3 additional 4 or 8K monitors (HDMI, Thunderbolt 4)
  • User expandable NVMe Storage and RAM
  • Opens with Standard Phillips Screwdriver
COOLING

● Dual Fans With Heat Dissipators

● User Selectable Power Profiles

● Logarithmic Fan Curve Keeps Unit Near-Silent on Idle-to-Modest Use

● Adjust Power Profiles with Power and Fan

SECURITY

● Kensington Lock Mount

● Physical Security WebCam Shutter

● Optional No-Cost Full Disk Encryption

● Optional Pre-Configured YubiKey 5 NFC 2FA

WARRANTY

● One-, Two-, or Three-Year Limited Warranty

● Includes Unmatched Linux-First Support

● Business and Personal Extended Support Contracts Available

ADDITIONAL DETAILS

FOOTNOTES

[01] Unless otherwise noted, benchmarks were run on AC power with compositing disabled and the CPU set to high-performance mode with the linear fan curve. Max GPU temperature was 73° C and the max fan volume was 42 dB measured two feet from the screen center.


Geekbench 5 results:

Geekbench 6 results:

[01a] See graph by Intel shown at CES 2025.

[02] [02a] NVIDIA RTX 5080 M and RTX 5090 M GPUs can be configured to use lower power limits; the Zr is configured to provide up to the maximum 175 W TGP when needed.

[03] See the full and detailed list of tools on the Tools Page.

[04] Versus CPU-only ML pipelines.

[05] Stable Diffusion and Qwen3-0-6b are found on the United Compute score board in their respective tabs.

[06] AI benchmark results for RTX 5090 M are based on a ratio of publicly available benchmarks.

.

[07] Unless otherwise noted, all GPUs shown are mobile variants. Scores are shown in the form Average FPS / Composite Score.

[08] Heaven Medium settings include medium quality, 1080p resolution, normal tessellation, and 2x antialiasing.

[09] Heaven Ultra settings include Ultra quality, 1080p resolution, normal tessellation, and 8x antialiasing.

[10] Graphics benchmark estimates for RTX 5090 Mobile are calculated using online comparisons showing a 23% increase from the RTX 5080 Mobile GPU.

[11] Blender results links include RTX 5070 Ti (5688), RTX 3080 Ti (3936), and RTX 4060 (3828). RTX 5070 Ti testing done using Blender 3.6 to provide accurate comparison with prior, 3.x-version benchmarks.

[12] Blender result for RTX 5090 is estimated based on publicly available scores with a maximum score of 8850RTX 5090 laptop GPU.

 FREE SHIPPING: Applies to shipping to continental US and Canada. All orders are fully insured and signature verified. Shipping costs to other locations are reduced by an equivalent value which varies by model.

 5-DAY TURNAROUND: Unless otherwise noted, all units are stocked for timely builds, and are typically shipped within 3-5 business days. All RAM, NVMe drives, and SSD drives are name-brand components renowned for reliability and high performance. These are firmware-upgraded, stress-tested, and warrantied for your system.

HAVE QUESTIONS?Call 844-536-2871 or write
TellMeMore@kfocus.org   |  GET FOCUS MERCH
